Product Description

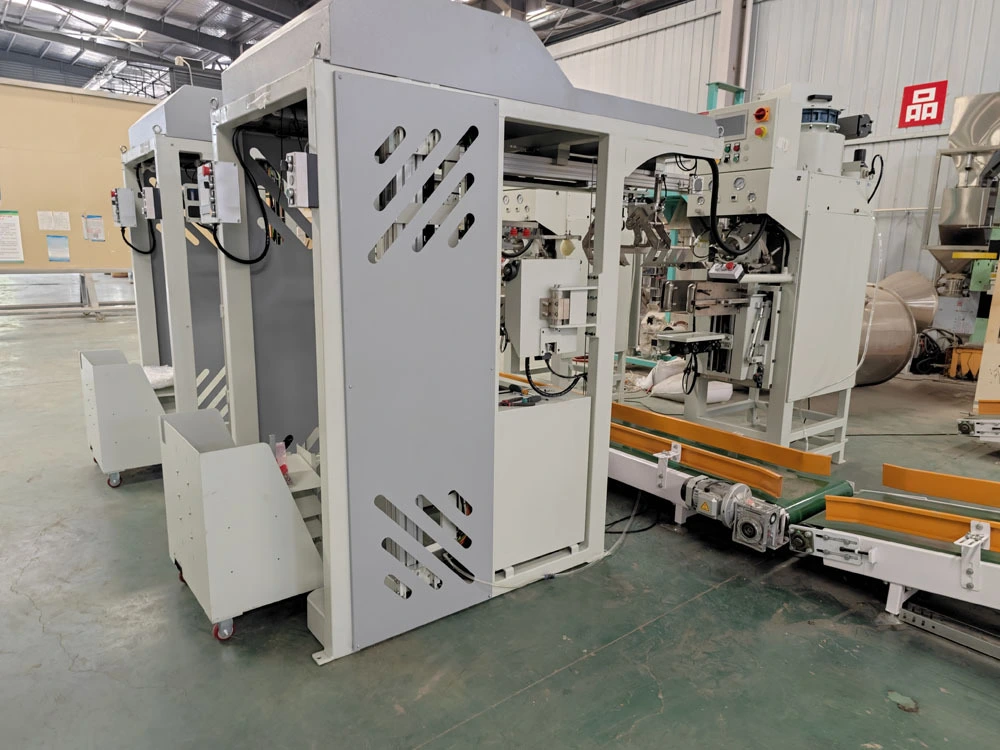

The bag placer can automatically complete the whole process of picking up the bag, lifting the bag to a specific height, opening the valve port of the bag, and placing the bag valve port on the discharge nozzle of the packing machine. The automatic bag placer consists of two parts: Bag cart and host machine. Each bag placer (bagging machine) is equipped with two bag carts, which can alternately supply bags to ensure that the bag placer can achieve uninterrupted continuous operation.
The bag placer is fully automatic controlled by PLC, and can be connected with the packaging machine PLC, so that the parameters of the whole process from bag placing to material filling into bags can be set only through the bag placer PLC control panel. Multiple bag placers and packaging machines can also realize PLC linkage.
product case
An automatic bag placer prepares empty valve bags and positions them on a filling spout before product discharge. Our system combines bag storage, mechanical handling and PLC-based sequence control to reduce repetitive manual bag placement and coordinate bag supply with the packaging process.
Empty bags are stored on the bag cart and presented to the handling mechanism. Stable bag stacking and correct orientation help support consistent pickup.
The bag handling mechanism picks up an individual bag and moves it to the required working position. Pickup reliability depends on bag condition, stacking and material characteristics.
The valve opening is prepared for placement on the filling spout. The opening method and handling settings must suit the bag structure and valve dimensions.
The bag valve is positioned onto the packing machine discharge spout. Correct alignment helps establish a reliable handover to the filling stage.
Control principle: We use PLC-based automatic control and can link the bag placer with compatible packing machine controls. The actual operating sequence, interlocks and parameter settings should be confirmed for the selected machine configuration.
An automatic bag placer works as part of a coordinated packaging system rather than as an isolated machine. The bag handling cycle, filling spout position, material discharge and downstream bag transfer must be compatible to achieve stable production.
The bag placer prepares an empty valve bag and positions its valve on the filling spout. The filling equipment must be ready to accept the bag at the correct time, with suitable mechanical alignment and control coordination.
After the bag is correctly positioned and the required operating conditions are satisfied, the filling machine performs the filling cycle. Filling rate, weighing control and material characteristics influence the actual output of the complete system.
Once filling is complete, the packaging machine releases or transfers the filled bag according to its design. A suitable conveyor can move the bag to subsequent handling, closing or palletizing equipment.
PLC communication and agreed operating signals coordinate the equipment sequence. For an integrated line, the control design should address ready signals, cycle completion, faults, emergency stops and safe recovery procedures.
Integration note: Actual PLC communication protocols, safety interlocks and automatic restart behavior depend on the selected equipment and control configuration. These details should be confirmed during engineering rather than assumed to be identical across all packaging machines.
Reliable automatic bag placement depends on the physical characteristics of the empty bag and the geometry of the filling spout. Before selecting an automatic valve bag placer, check the bag construction, valve opening, stacking behavior and compatibility with the intended packing machine.
| Evaluation factor | What to check | Why it matters |
|---|---|---|
| Bag construction | Paper, woven material, film or a laminated structure; stiffness and surface condition. | Affects pickup behavior, separation and handling stability. |
| Valve geometry | Valve opening dimensions, sleeve shape and bag orientation. | Determines whether the valve can be positioned correctly on the spout. |
| Bag dimensions | Bag width, length, thickness and dimensional consistency. | Influences the handling range, pickup position and required adjustments. |
| Bag stack condition | Stack alignment, adhesion between bags, deformation and feeding consistency. | Helps reduce missed picks, double feeding and interruptions. |
| Filling spout | Spout diameter, shape, mounting position and clearance around the machine. | Ensures that the bag placer can deliver the valve to the intended position. |
| Production conditions | Required throughput, filling cycle, replenishment intervals and operating environment. | Supports realistic cycle matching and stable line operation. |
Bags made from the same nominal material can behave differently because of surface friction, coating, moisture, static electricity, stiffness and manufacturing tolerances. We recommend checking representative empty bags and the actual filling spout during equipment selection. This helps establish whether the pickup, valve-opening and placement sequence is suitable for the intended application.
Automatic bag placement can reduce repetitive manual handling, but actual productivity depends on the whole packaging cycle. Bag supply, pickup reliability, filling time, material flow and downstream transfer all influence the number of completed bags per hour.
The bag placing cycle should be coordinated with the filling machine's operating sequence. A faster placer does not automatically increase total output if weighing, filling, bag release or downstream conveying takes longer. Evaluate the complete cycle before setting a production target.
The bag cart arrangement is intended to support continuous bag supply. Operators should replenish bags before the available stack is exhausted and keep the stack aligned according to the machine's operating requirements. Bag preparation and replenishment practices affect actual uptime.
Consistent bag dimensions, suitable storage conditions and correct positioning help maintain reliable pickup. Regularly checking the bag-handling mechanism, alignment and control signals can help identify recurring placement problems before they cause prolonged downtime.
The conveyor, bag closing equipment and palletizing system should accommodate the filled bag discharge rate. Proper coordination helps avoid congestion at the filler and prevents a downstream stoppage from unnecessarily interrupting upstream equipment.
Our existing product page lists a bag picking and placing speed of 240–280 bags per hour. This is a published bag placement figure, not a guarantee of finished-bag output under every operating condition. Actual production should be verified against the selected filling machine, bag specification, material, operating settings and integrated line cycle.
Correct installation and preventive maintenance help maintain consistent bag pickup, valve opening and spout placement. A practical maintenance plan should address mechanical alignment, bag feeding, control functions and the working environment.
Safety reminder: Isolate and secure electrical, pneumatic and other hazardous energy sources before maintenance or clearing a jam. Follow the supplied machine manual, site safety procedures and the maintenance intervals specified for the actual equipment configuration.
Automatic bag placement is most useful in industrial packaging operations that repeatedly position compatible valve bags on a filling spout. The right configuration depends on the packaged material, bag construction, filling process and the level of automation required by the production line.
Valve bag packaging is widely used for cement, dry mortar, gypsum and related powdered building materials. Automatic bag placement can reduce repetitive manual bag loading when the bag format and filling spout are compatible.
Powdered chemicals and industrial additives may be packaged through compatible valve bag filling systems. Bag material, product containment, equipment compatibility and site-specific safety requirements should be reviewed for each application.
Selected fertilizers and compatible granular products can be packed through suitable valve bag systems. Material flow, bag strength and the filling equipment design determine the appropriate packaging arrangement.
For complete packaging lines, we can coordinate the automatic bag placer with compatible filling equipment and downstream conveying or palletizing stages. Suitability for a particular product or industry should be confirmed against the actual process, bag construction and operating environment.
Find answers to common technical and purchasing questions about automatic bag placing machines, valve bag compatibility, PLC integration, production output, installation and maintenance.
An automatic bag placer is an industrial handling machine that picks up empty bags, prepares their openings and positions them on a compatible packing machine's filling spout. It reduces the need for operators to manually load each bag and helps establish a repeatable bag feeding sequence. Our automatic bag placer is designed for valve bag placement and uses PLC-based control to coordinate the operating steps.
Our current product page lists a bag picking and placing speed of 240–280 bags per hour. This figure describes the published placement speed, not a guaranteed output for every complete filling line. Actual finished-bag production depends on bag characteristics, filling cycle time, material behavior, equipment coordination and operating conditions. The target rate should be confirmed for the intended configuration.
Integration may be possible when the existing filling machine has compatible spout geometry, adequate installation space and a suitable operating sequence. The mechanical mounting, bag placement position, electrical interfaces and control signals must be reviewed before installation. We can assess the proposed arrangement against the selected equipment configuration, but compatibility should not be assumed for every filling machine.
Bag compatibility depends on the machine's designed handling range and the bag's construction. Relevant factors include material stiffness, surface friction, dimensions, valve shape, stack consistency and the condition of the empty bag. Paper, woven polypropylene and other bag structures should be evaluated individually rather than assumed to be interchangeable. We recommend confirming the actual bag samples and filling spout before finalizing equipment selection.
A programmable logic controller coordinates the machine's operating sequence, including the configured bag handling movements and communication with compatible packaging equipment. Our product uses PLC automatic control and can be linked with the packing machine PLC. The exact control functions, available signals, interlocks and parameter adjustments depend on the supplied configuration and should be confirmed during system engineering.
Our published product description specifies two bag carts that can supply empty bags alternately. This arrangement is intended to reduce interruptions associated with replenishing the bag supply. The actual operating continuity still depends on timely bag replenishment, correct bag stacking, reliable handling and the filling machine's cycle. The two-cart arrangement should not be interpreted as eliminating every possible production stoppage.
Reliable placement depends on consistent bag dimensions, stable bag stacking, correct pickup position, suitable valve-opening settings and accurate alignment with the filling spout. Worn handling components, deformed bags, surface adhesion, incorrect adjustments or mistimed control signals can cause missed pickups and placement failures. Representative bag trials, correct setup and routine maintenance help identify and reduce these problems.
Yes, an automatic bag placer can form part of an integrated line when the selected equipment is mechanically and electrically compatible. A typical arrangement includes empty bag placement, valve bag filling, filled-bag conveying and subsequent handling or palletizing. Our broader packaging equipment range supports the planning of connected production systems. Final integration requires confirmation of throughput, control interfaces, safety functions, layout and downstream capacity.
Routine maintenance generally includes inspecting the bag handling mechanism, checking alignment and fasteners, keeping the bag supply area clean, and reviewing sensors, wiring and pneumatic connections where fitted. Operators should also monitor recurring pickup failures and placement interruptions. Maintenance intervals and replacement procedures should follow the supplied manual and the actual machine configuration. Always isolate hazardous energy before servicing or clearing a jam.
Before purchasing, verify the empty bag dimensions, material and valve construction; the filling spout dimensions and position; the required placement and filling cycle rates; the available installation space; and the required PLC interfaces. Also consider bag replenishment, maintenance access, operator safety and downstream equipment capacity. We recommend confirming these technical compatibility points before finalizing the machine configuration so that the selected system suits the intended packaging application.
